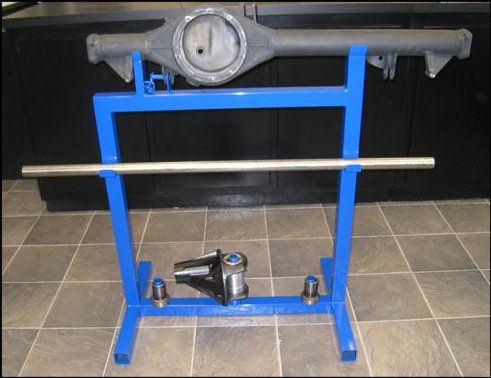

AMS inspection stand with ground steel bar that simulates the axle line, axle bearing block locators, and toyota gear carrier with AMS spool simulator. |

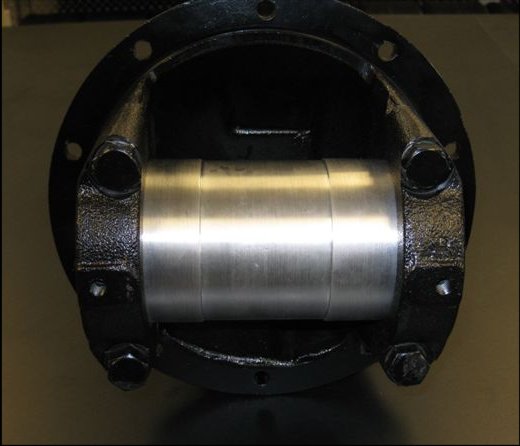

Toyota rear carrier in housing with ground steel bar and axle bearing block locators mounted in test position. This simulates the axle line from the left side bearing block thru the spool to the right side bearing block. If the ground steel bar slides thru and the axle bearing block locators slide into the axle bearing blocks the housing is tru. |

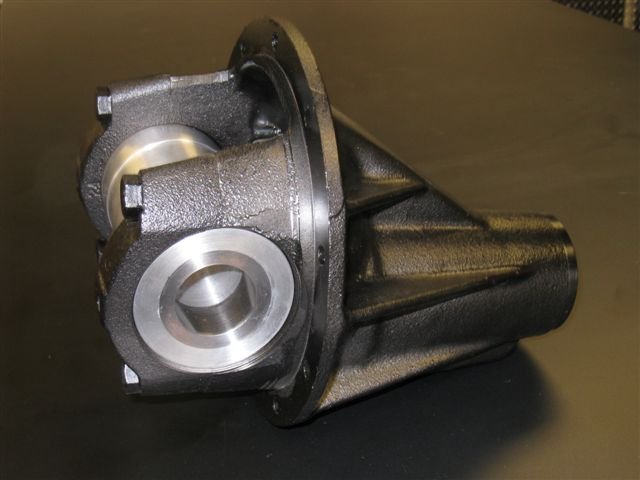

Side view of AMS Spool Simulator.
|
Front view of AMS spool simulator. |

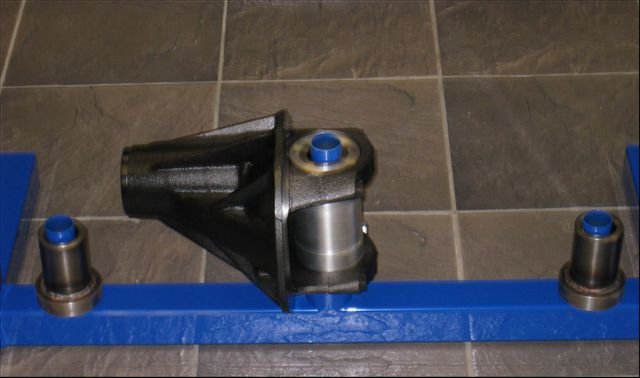

Location at the bottom of the inspection stand for the carrier with AMS spool locator and axle bearing locators.
|

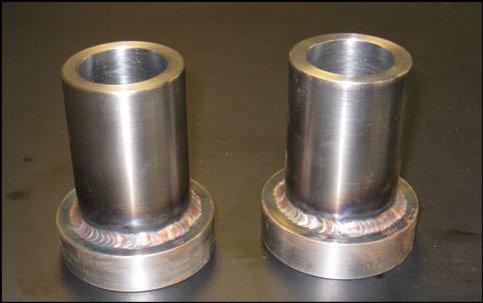

Axle bearing block locators |
Click on any photo for a larger view
-

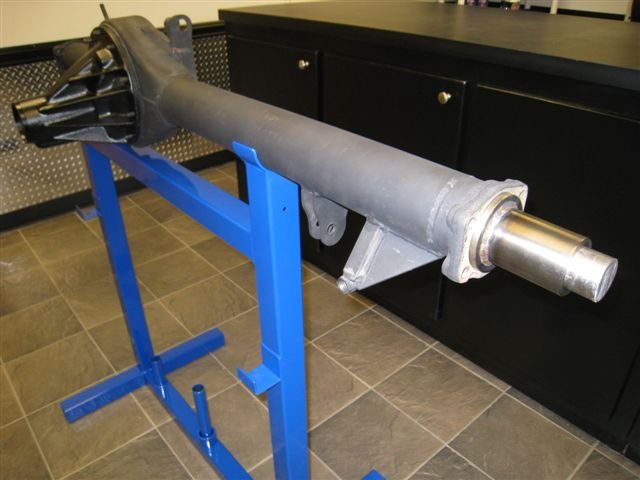

This stand simulates the axle line from the left side bearing block thru the spool to the right side bearing block. If the ground steel bar slides thru and the axle bearing block locators slide into the axle bearing blocks the housing is tru.
-
A word of caution, some people use this or something similar to repair housings, this is a inspection tool. Our rear housing jig (to actually repair and manufacter) is much more complicated than this piece.
-
All of the above pieces are fabricated and machined at Andrews Motorsports Shop and are just a small example of our capabilities.
|
